3 - Phase Air Cooled Servo Controlled Voltage Stabilizer (Analog) Manufacturers & Exporters

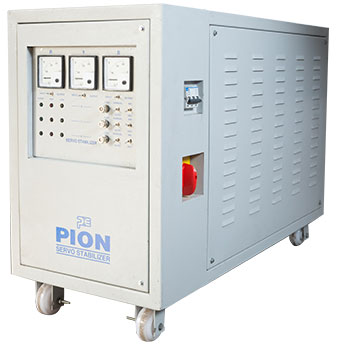

3 - Phase Air Cooled Servo Controlled Voltage Stabilizer (Analog)

Specifications:

Input Voltage Range	340 V to 480 V AC 360 V to 480 V AC 360 V to 460 V AC Customize
Output Voltage	415 V ± 1% (Variable 5%) OR Customize
Frequency	47 Hz to 53 Hz
Power Capacity	3 kVA to 100 kVA
Cooling	Air Cooled
Voltage Regulation	±1 %
Duty Cycle	Continues
Wave-form distortion	Nil
Ambient	0 to 45° C
Environment	Designed for indoor tropical use
Mounting	Free on wheel

Standard Features:

Controls	1. Auto/ Manual switch to select mode 2. Increase /Decrease switch to Control O/P voltage in manual mode 3. Pot for variation output voltage in auto mode
Protection	1. Under/Over voltage cut off at output 2. Over load & short circuit protection using MCB & MCCB
Meter	Voltmeter with input/output voltage selector switch
Indicating lamps	Power ON, High/Low Voltage indication

Optional Features

Input / Output Voltage range as per requirement
Digital voltage-ampere-frequency meter
Servo by pass switch
Line noise and surge suppression network
Isolation transformer at output
